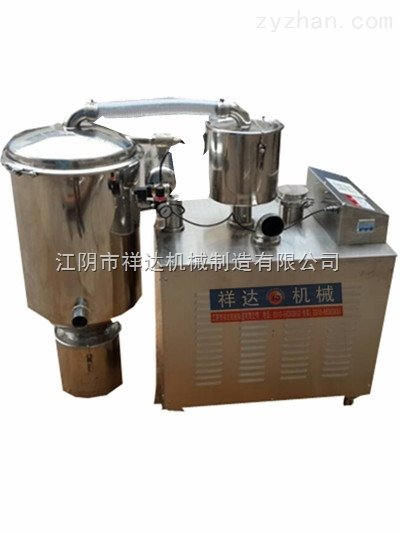

Vacuum Feeding Machine for Food PowderMainly used for conveying powdered and granular materials, such as API powders, chemical powders, metal oxide powders, and food powders; capsules, tablets, pills, snack granules, feed pellets, etc. Not suitable for conveying overly moist, sticky, or excessively heavy materials.

Vacuum Feeding Machine for Food PowderProduct Introduction As the name suggests, a vacuum conveyor uses vacuum technology to directly transport materials from a container to mixers, reactors, hoppers, tablet presses, packaging machines, vibrating screens, granulators, wet granulators, dry granulators, and crushers. For vacuum feeders with material level control, the material in the hopper of the receiving equipment is automatically fed through a material level controller. When the material in the receiving equipment exceeds a certain level in the hopper, the vacuum feeder stops feeding. When the material falls below a certain level in the hopper, the vacuum conveyor automatically starts to complete the feeding process for the receiving equipment.

Vacuum Feeding Machine for Food PowderStructural Features: The vacuum feeding machine consists of a vacuum pump (oil-free and water-free), a stainless steel suction nozzle, a conveying hose, a PE filter (or 316L stainless steel filter), a compressed air backflushing device, a pneumatic discharge door device, a vacuum hopper, and an automatic material level control device. The entire system is designed with a reasonable layout and exquisite manufacturing. The entire conveying process is carried out in a completely sealed state, eliminating dust pollution. The whole equipment uses compressed air as the power source and does not require a mechanical vacuum pump. The machine has a simple structure, small size, and is easy to disassemble and clean. It operates with low noise, is convenient to control, and can eliminate static electricity on materials. It reduces labor intensity for workers and solves issues such as dust spillage during feeding. It is an ideal piece of equipment for pharmaceutical and food factories to pass GMP certification and promote clean and civilized production.

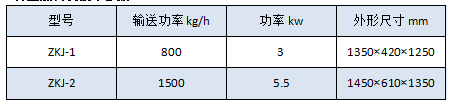

Vacuum Feeding Machine for Food PowderTechnical Parameters
