ZXQ-2S Automatic Metallographic Specimen Mounting Press

The ZXQ-2S automatic metallographic specimen mounting machine is a multifunctional water-cooled mounting machine designed for mounting various specimens. It is suitable for specimens that are difficult to handle by hand, such as small samples, irregularly shaped specimens requiring edge protection, or specimens that need automatic grinding and polishing. Specimen mounting is an essential process in these cases. It also facilitates the determination of microstructures under a metallographic microscope.

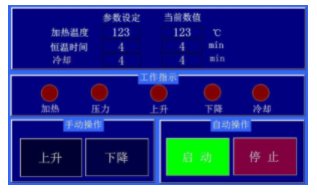

Control system:

This machine is a fully automatic metallographic specimen mounting press, featuring water inlet and outlet cooling functions. It is suitable for hot mounting of all materials (thermosetting and thermoplastic). After setting the mounting parameters such as heating temperature, holding time, and applied force, place the specimen and mounting material, close the cover, and press the start button. The mounting process will be completed automatically, eliminating the need for an operator to remain by the machine.

Inlay capability:

The ZXQ-2S automatic metallographic sample mounting machine allows users to freely select and replace molds of four different specifications according to the requirements of different samples. It can also press two samples simultaneously, doubling its preparation capacity.

Technical Specifications:

Sample pressing specifications: φ25mm、φ30mm、φ40mm、φ50mm

Replaceable steel sleeve：φ25mm、φ30mm、φ40mm、φ50mm

Temperature setting range ：0~300℃

The setting range for the holding time. ：0 minutes 99 seconds

Cooling time setting range ：0 minutes 99 seconds

System pressure setting range: 0~2MPa (corresponding sample preparation pressure range: 0~72MPa)

Cooling method ：Water cooling

Heater ：220V，1200W

Total power supply ：1600W

Input Power Supply ：Single-phase AC 220V, 50Hz

External dimensions ：615*510*500（mm）

Net weight: 104kg

Gross Weight ：110kg

Common metallographic consumables:

Name	Specifications	Usage	Here is the English translation of the Chinese text "图片": Image
Metallographic cutting blade	250*2*32mm, 300*2*32mm, etc.	Used for cutting metallographic specimens.
Metallographic mounting material	Black*, transparent, etc.	Used for embedding small, thin-sheet, and similar workpieces.
Metallographic Sandpaper (Dry/Wet Use)	320#, 600#, 800#, 1200#, etc.	Metallographic specimen grinding of various ferrous and non-ferrous metals.
Polished flannel	Velvet, silk, woolen fabrics, etc.	Precision polishing of various metallographic specimens and instrument/indicator light components.
High-Efficiency Diamond Spray Polishing Agent	W0.5um, W1um, W2.5um, etc.	Used for sample grinding and polishing of different materials and hardness levels.
