Titanium Hydride Argon-Protected Jet Mill

< >

Follow the product

Compare

Report

Titanium Hydride Argon-Protected Jet Mill

price Grid

￥0.00

Brand:

四川巨子

Model:

JZDB

Output:

20-500kg/h

Installed Power (kW):

20-60

Product fineness:

3-74um

Feed particle size (mm):

less than 2mm

Working principle:

Wind shear

Air consumption (L/min):

0.02

Air Pressure (kPa):

0.8

Degree of crushing:

Ultra-fine grinding

Energy consumption per unit:

0.1-0.2kw

立即询price Contact Information

Take Another Look

Sichuan Juzi Powder Equipment Co., Ltd.

Shop owner：Manager Deng

Address：No. 19, South Section of Huoju West Street, High-tech Zone, Mianyang City, Sichuan Province

You May Like

Ceramic Mechanical Ultra-Fine Grinder

￥0.00￥0.00

The inner lining of a wet ball mill is coated with polyurethane.

￥0.00￥0.00

Mechanical seal

￥5.00￥0.00

热Sell商品

Product Introduction

Working Principle:

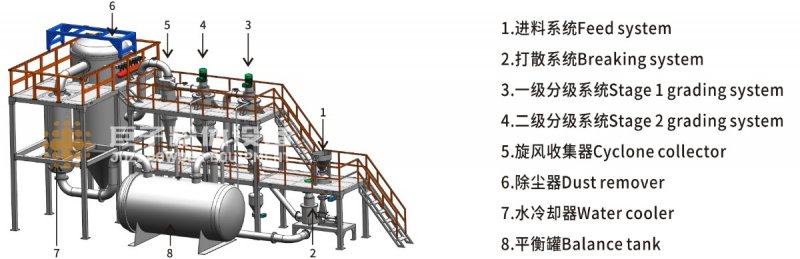

A closed-loop jet milling system is used to crush the coarse titanium hydride powder obtained after hydrogenation.，Overcame the hydrogenation-dehydrogenation method(hydrogenation dehydrogenation,HDH)The prepared titanium powder exhibits uneven particle size distribution.,Quality issues such as a wide particle size distribution.;The crushing mechanism can be summarized as follows::Subjected to the impact of multiple high-speed, high-pressure argon gas streams.、Polish,Powder particles collide with each other.、Friction,and the powder particles with the abrasive chamber wall,Collision of the classification wheel,Coarse titanium hydride powder is crushed from large particles into fine particles.。
