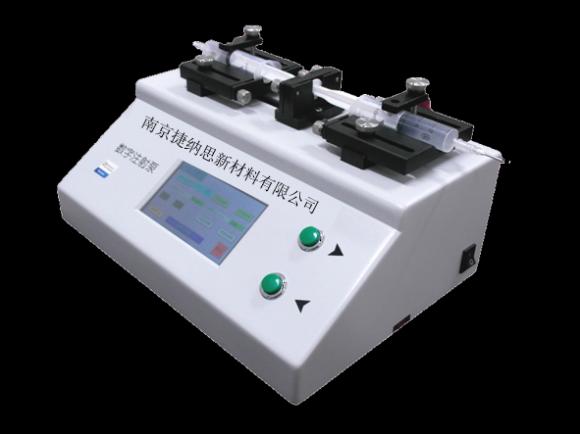

The JNS/MFC series bidirectional push-pull syringe pump is a low-flow, high-precision syringe pump capable of continuous liquid transfer. Its durable mechanical transmission design ensures long service life and high reliability. The lead screw is fixed using specialized high-precision aviation bearings instead of traditional copper sleeves, offering extended lifespan and enhanced accuracy. It supports multiple working modes. Equipped with a high-resolution color touchscreen LCD, parameter settings are simple and quick, while status displays are clear and intuitive. It features adjustable protection mechanisms and an alarm system. The pump supports the MODBUS protocol, making it easy to connect with other devices. Its full stainless steel housing facilitates easy cleaning and maintenance.

JNS/MFC Series Bidirectional Push-Pull Syringe PumpIt is a low-flow, high-precision device capable of continuous transmission.Liquid syringe pump；The constant flow pump is a single-channel, bidirectional push-pull syringe pump. It is capable of accommodating syringes of various specifications.(Sampler)，Widely used in biological and chemical reaction injection experiments, long-term animal drug injection experiments, electrospinning, microfluidic applications, and other laboratory micro-injection experiments, it drives the syringe through a mechanical device to achieve high-precision, stable liquid transfer.

Durable mechanical transmission design, long service life, and high reliability.The lead screw is fixed using specialized high-precision aviation bearings instead of traditional copper sleeves, offering long service life, high accuracy, and support for multiple working modes.High-resolution color touchscreen LCD allows for quick and easy parameter settings and provides a clear, straightforward status display; equipped with an adjustable protection mechanism and alarm system.；SupportMODBUSThe protocol is easy to connect with other devices.AllStainless steelShell,Easy to clean and maintain.

Single-channel bidirectional push-pull syringe pump, Dual-channel bidirectional push-pull syringe pump

Schematic Diagram of Push-Pull Mode

Functional Features:

1Assemble two syringes and connect them with several tubes to achieve continuous liquid transfer.

2, Multiple working mode options;

3Color touch screen for convenient and quick operation;

4Supports multiple standard syringes, with customizable syringe options.

5High-precision control;

6, syringe protection and traffic jam alert;

7Full stainless steel housing.

Technical Parameters

Number of channels:1-8

Injection volume per microstep:0.026uL(10mLSyringe)

Applicable syringe type:0.5mL-60mL

Injection distance per microstep: 0.156um

Flow range:0.1uL/h-681.73mL/min

**Linear velocity:**17.33mm/s

*Small linear velocity:0.00001583mm/s

**Pace:6933 Step/s

*Small Step Speed:0.02533 Step/s

Working mode: bidirectional push-pull

Linear thrust:>30Kgf

Control accuracy: when>30%When fully loaded, control the error.<=0.1%

Control and Display:4.3Inch LCD Colorful Touch Screen

Voltage range:DC18V-DC36V

Working environment: temperature5-40℃, relative humidity<80%
