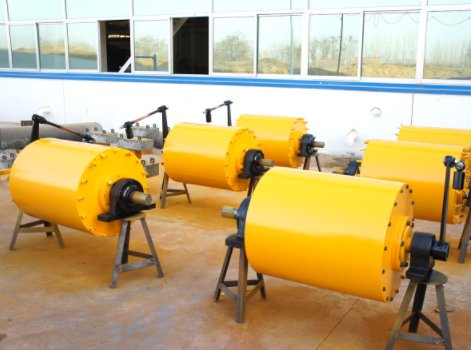

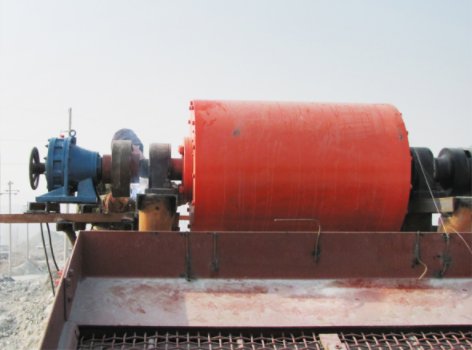

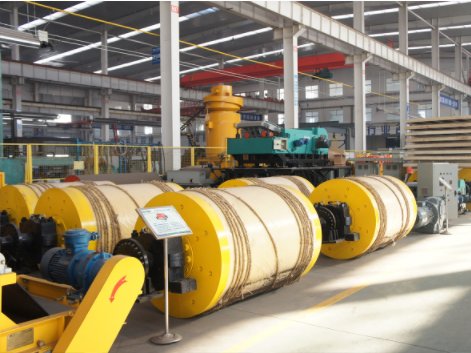

CTDG Series Permanent Magnetic Dry Large Block Magnetic Separator

Scope of Application：Mainly used for removing iron from magnetite, coal washing plants, coal crushing, large power plants, belt conveyors, the chemical industry, ceramic powders, plastic crushing, cement ore crushing, the pharmaceutical industry, wood processing, and grain processing.

Technical Features

◆ The permanent magnet dry large block magnetic separator adopts a semi-shaft structure, and the magnetic system uses a semi-magnetic system structure.

◆ The permanent magnet dry large block magnetic separator is made of neodymium-iron-boron magnetic material with strong magnetic force and deep magnetic penetration, ensuring a high magnetic field strength on the drum surface.

◆ The magnetic field intensity of the permanent magnet dry large block magnetic separator can reach 2000-6000 GS;

◆ In the magnetic system of the permanent magnet dry large-block magnetic separator, the magnetic system adopts a design with large pole pitch and multiple magnetic poles, which increases the number of magnetic stirring actions and is more conducive to the separation and extraction of magnetic minerals.

◆ The permanent magnet dry large-block magnetic separator adopts a large wrap angle design, effectively extending the length of the separation zone and further improving the recovery rate of iron ore.
